Mazda Miata NA 3D Scan

Mazda Miata NA Fender & Body 3D Scan

Front & Rear Fender, Bumpers & Trunk Reference Geometry

High-accuracy laser scan for custom bodywork, widebody design, and panel development.

Product Overview

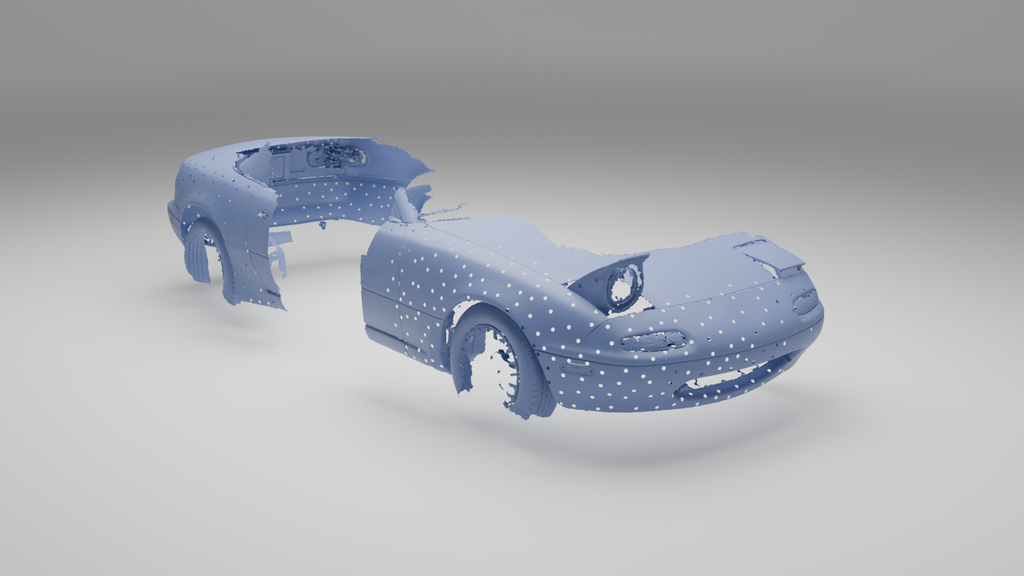

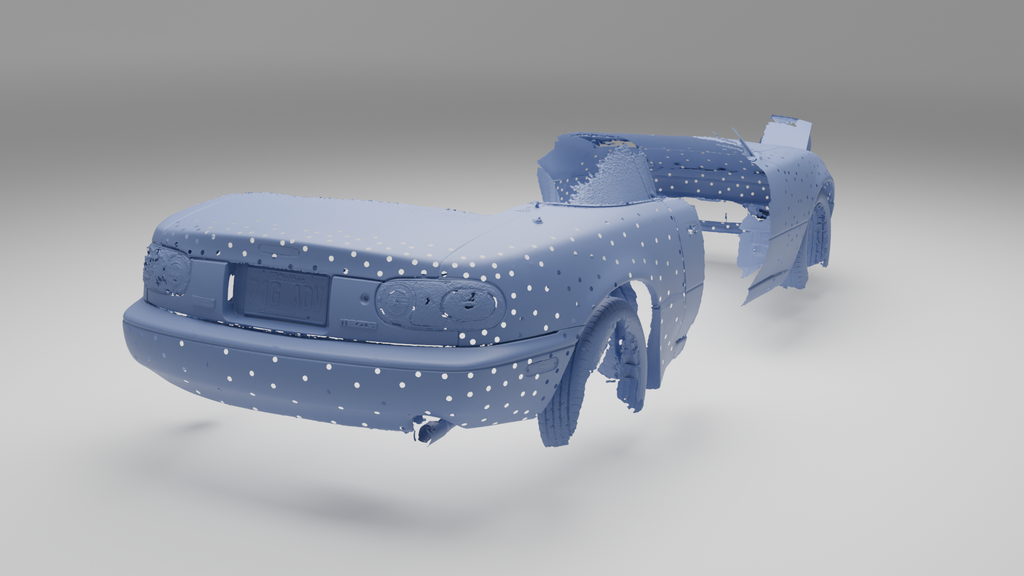

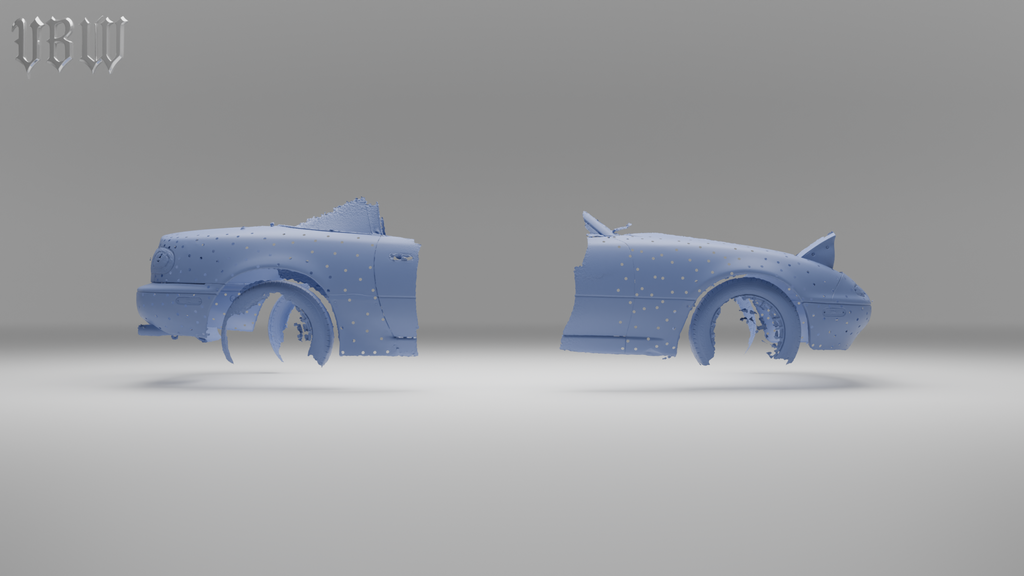

This product includes a clean, accurately aligned 3D scan of key exterior body areas from a Mazda Miata NA, captured using a Shining3D EinStar 2 in laser mode for maximum surface fidelity and dimensional accuracy.

Designed for builders, fabricators, designers, and CAD users, this scan provides reliable reference geometry for developing widebody kits, fender flares, bumpers, replacement panels, and custom body components — without the need to physically scan a vehicle yourself.

This is reference-grade scan data, not a full vehicle model.

What’s Included

• ✅ Front fender scan (one side, mirrored for opposite side)

• ✅ Rear quarter / rear fender scan (one side, mirrored for opposite side)

• ✅ Front bumper outer surface

• ✅ Rear bumper outer surface

• ✅ Trunk / rear deck geometry

• ✅ Cleanly separated parts

• ✅ Proper real-world scale

• ✅ Roughly aligned in vehicle space

• ✅ Ready for Blender, Fusion 360, SolidWorks, Rhino, etc.

Scan Quality & Accuracy

• Captured using Shining3D EinStar 2 – Laser Mode

• High surface detail suitable for:

  • Shrinkwrap workflows

  • Panel offset modeling

  • Widebody and flare design

  • Bumper and aero development

  • Mold and plug creation

• Cleaned to remove scanning noise and common artifacts

• No photogrammetry distortion or LiDAR softening

This scan is intended as design reference geometry, not a final Class-A surface.

Ideal Use Cases

• Widebody & fender flare design

• Custom front and rear bumper development

• Trunk-mounted aero and rear body modifications

• Reverse-engineering factory body lines

• Overlay modeling and scan-to-CAD workflows

• Body kit development

• Custom fabrication and prototyping

File Formats Included

• OBJ

(Real-world scale preserved, units maintained)

What This Is Not

To avoid confusion, this product does NOT include:

• ❌ Full vehicle scan

• ❌ Doors, roof, windshield, or interior geometry

• ❌ Inner structure or mounting brackets

• ❌ Engine bay or chassis data

• ❌ Finished CAD or quad-surfaced body panels

This is clean scan reference data, exactly what most builders need to start designing accurately.

License & Usage Terms

✔ Personal use allowed
✔ Commercial use for physical products allowed
✖ Redistribution or resale of digital files prohibited
✖ File sharing strictly forbidden

You may design and sell physical parts created using this scan.
You may NOT resell, share, or redistribute the scan files themselves.

Digital Product Notice

This is a digital download.
No physical items will be shipped.
Due to the nature of digital products, all sales are final.

Why Choose VBW Scans?

VBW scans are created specifically for real-world fabrication, not hobby visualization. Every scan is captured, cleaned, and organized with design accuracy and usability in mind — saving you hours of prep work and eliminating guesswork.
